Profibus Signal Industrial Slip Ring Through Hole 95mm For Intelligent Equipment

Brand Name : CENO

Model Number : ECN095-03P4-04S

Certification : CE,RoHS,ISO9001,UL

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal, Western Union

Supply Ability : 500pcs per month

Delivery Time : 1 week

Packaging Details : Carton/As request

Current & Circuits : 3circuits*20A, 4circuits*Profi-bus Signal

Rating Voltage : 0~115VAC/VDC

Dielectric strength : ≥500VAC@50Hz

Isolation resistance : ≥500MΩ@500VDC

Electrical noise : ≤30mΩ (50rpm)

Operating speed : 0~350rpm

Contact material : Precious metal

Housing material : Aluminum alloy

Working temperature : -20°C~+60°C

Working humidity : 60%

IP protection grade : IP51

Through hole size : Ø95.25mm

Lead wire size : AWG12# Wire Teflon®UL 4 core Twisted Shielded wire

Lead wire length : Rotor : 5000mm Stator : 5000mm

Installation : Fix up stator side with anti-rotation side shaft drives rotor running

Contact Now

Profibus Signal Slip Ring With Through hole 95mm For Industry Application

ECN095-03P4-04S is an integrated through hole slip ring including 2 circuits electric power and 4 circuits profi-bus signal from CENO Electronics. As an opened, bidirectional, multi-station and all digital communication system, The profibus has been developed deeply and wildly applied in automation machinery in recent years. CENO’s profibus series product can transmit varies RS, NET and bus signal that according to customer special request, It’s transmitting data stably, and low loss, no string code, no packet loss. For more information about how CENO’s Profibus slip ring can be tailored to fit your specific application, pls contact us

Features

  • Can combined multiple signals and various currents
  • Transmit servo motor current & encoder control signal together
  • Install easily & transmit stably

Applications

  • Automatic machine
  • Communication systems
  • Measuring instrument
  • Building automation
  • Intelligent equipment

Optional

  • Circuit number & Current
  • Channels Ethernet type
  • Materials
  • Protection grade
  • Working speed

Specification

ECN095-03P4-04S

 Specification
Current & Circuits 3circuits*20A, 4circuits*Profi-bus Signal
Rating Voltage 0~115VAC/VDC
Dielectric strength ≥500VAC@50Hz
Isolation resistance ≥500MΩ@500VDC
Electrical noise ≤30mΩ (50rpm)
Operating speed 0~350rpm
Contact material Precious metal
Housing material Aluminum alloy
Working temperature -20°C~+60°C
Working humidity 60%
IP protection grade IP51
Through hole size Ø95.25mm
Lead wire size

AWG12# Wire Teflon®UL

4 core Twisted Shielded wire
Lead wire length

Rotor : 5000mm

Stator : 5000mm
Rotation Way Fix up stator side with anti-rotation side shaft drives rotor running

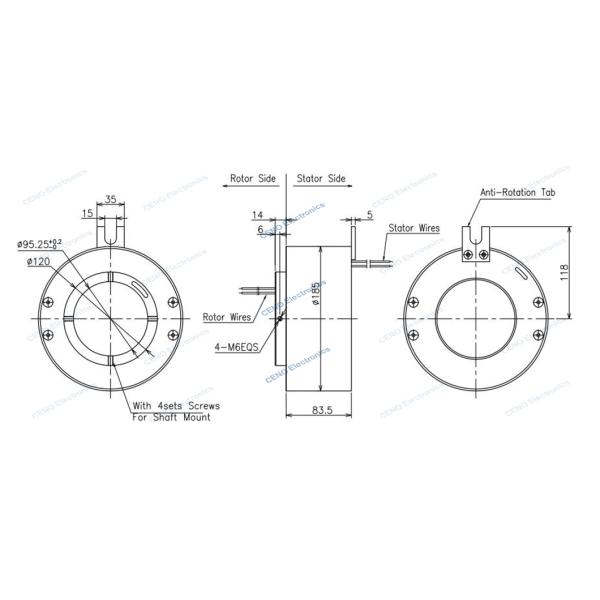

Outline drawing

Profibus Signal Industrial Slip Ring Through Hole 95mm For Intelligent Equipment

Application

Profibus Signal Industrial Slip Ring Through Hole 95mm For Intelligent Equipment

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Profibus Signal Industrial Slip Ring Through Hole 95mm For Intelligent Equipment

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Profibus Signal Industrial Slip Ring Through Hole 95mm For Intelligent Equipment

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
